Spühl is a global machinery manufacturer that boasts vast technical knowledge and an innovative spirit. With renowned Swiss quality and precision, the company develops and manufactures machines, spare parts for the production of innerspring units and provides excellent service and spare parts delivery. Outstanding are the 3-year warranty for new machines and the long lifetime of the equipment offered. Our new Smart Services include three different applications to help your company to automate production, monitor your machines, and collect production data. Optimized production and quality monitoring are essential for every manufacturer and bring many advantages to your production.
FPC-105 Pocket Spring Machine
The FPC-105 produces continuous strings of pocket springs.
The wire from the swift enters the wire section of the machine. It is fed through the heat treatment, where the wire is tempered. This heat treatment relaxes the springs from tense and prepares the wire optimally for coiling. The electronical coiling device forms the spring shape and loads the spring directly into the revolutionary cooling channel. The fabric roll is placed in the ergonomic fabric swift. The setting station moves the spring into the fabric section, where the springs are placed precisely into the folded fabric. The longitudinal and transversal welding stations close the pockets around the springs and assure a high-quality product. The conveying station transports the strings of pocket springs outside of the machine for further processing.
The touchscreen panel with user-friendly software allows a product change in a very fast way.
- Extensive working range
- Very fast product change
- Electronical coiling device
- Divided into wire and fabric section

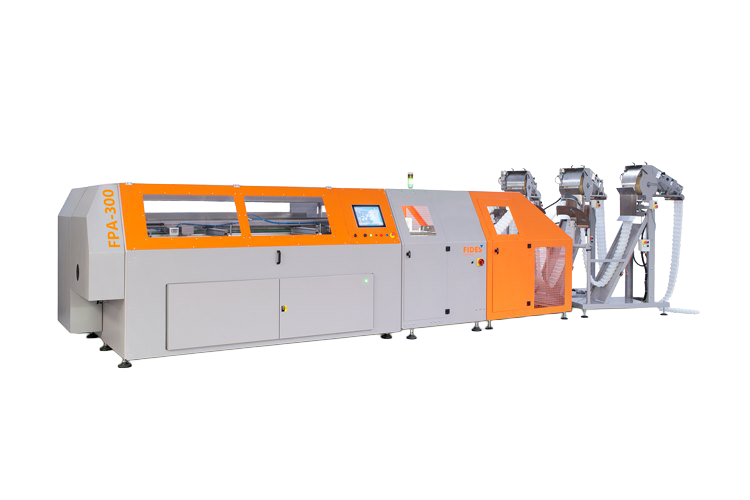

FPA-300 Pocket Spring Assembler
FPA-300 is a fully-automatic pocket spring assembler designed to manufacture continuous pocket spring units of any kind. Processing up to 12 cycles per minute, this machine features simple set-up and conversion to different pocket spring dimensions. The variable assembly system allows for "top/bottom" or "middle" gluing and includes several mounting styles: lengthwise, crosswise, parallel, nested and duplex. With its freely programmable glue saving system with interrupted glue lines, this machine enables you to optimize your glue costs. Online helpdesk support and easy access to all machine components make maintenance and cleaning easier than ever before.

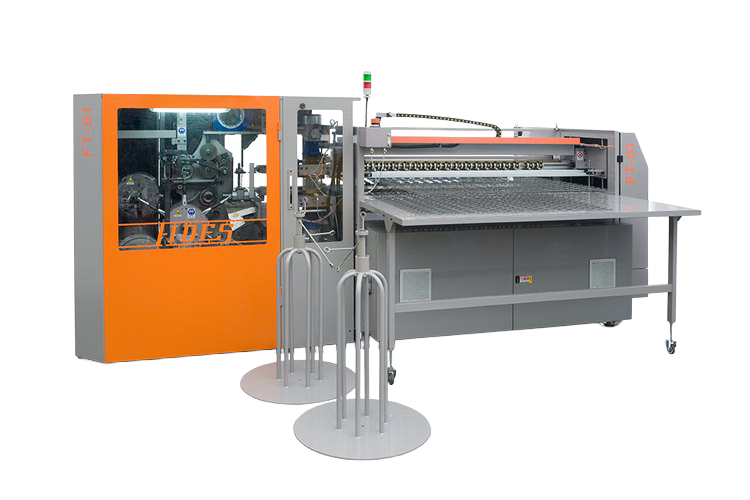

FT-81
FT-81 is a fully-automatic, compact transfer machine that manufactures high-quality, finished bonnell spring units.
In four processing steps, the wire, which is fed from the swift, is processed to a spring. The finished springs are picked up by a turning arm and the knots turn to the correct position. The springs are finally moved vertically into the conveyor channel and are gradually advanced. The feed rate corresponds to the spring spacing within the spring unit. During transport, the springs are turned from the horizontal to the vertical position.
After the programmed unit width has been reached, i.e., the required number of springs has been loaded, the row will be pushed by a loading slider into the jaws of the assembly machine. Using a helical feeder on the left side, one row after the other is tied into an innerspring unit. The innerspring unit ejection on the operator side allows for optimal handling by the operator.
After the coiling process, the springs are placed into a starshaped, 6-arm transport wheel and are gradually advanced to the next step. On the front side, the spring ends are knotted into end rings and heat-treated between two electrodes. This heating relieves the wire from the stress of the coiling process and therefore reduces the setting loss.
